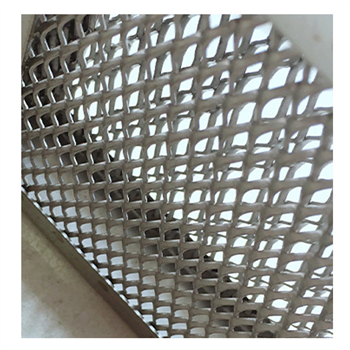

Titanium Mesh Anode

Titanium Mesh Anode

email

Functional characteristics

Product DescriptionThe platinized electrode is the most widely used type of electrode.It makes a regular appearance in electroplating,fuel cells, and other electrochemical applications. This electrode is based on titanium metal as anodes in the form of nets, plates, rods, filaments, tubes, wire and so on.The thickness of the standard platinum layer is 2-5µm. Under higher requirements, the thickness of the platinumlayer can reach 20µm. The service life of the platinum-plated titanium anode depends on the working medium (electrolyte) and the current strength (current density) of the anode. The current density should not exceed 75A /dm². Below this value, the wearof the platinum layer is very small, and the service life of the anode can also beestimated. According to experience, the wear of the platinum layer is about 1-4 grams per million amp-hours in afluorine-free chromium plating solution. When the current density is higher than 75A/dm².ImageSpecificationAnode TypePlatinized Titanium ElectrodeMaterialGr1 Titanium as substrateCoating TypePt+XDimension & ShapePlate, mesh, rod or customizedCoating ThicknessGeneral 1μm~6μmWorking ParameterCurrent density ≤5,000A/m², PH 1 ~ 12, Temperature 80℃Fluoride ion content 50mg/L
