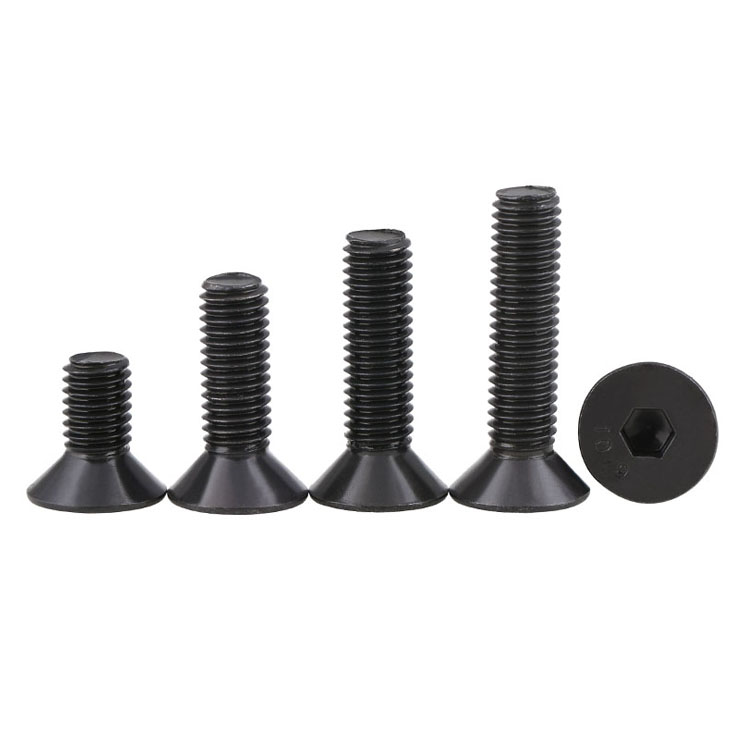

Titanium Socket Countersunk Head Cap Screw DIN7991 GR5

  • Product name: Titanium Socket Countersunk Head Cap Screw DIN7991 GR5
  • Size: M3,M3.5,M4,M5,M6,M8,M10,M12,M14,M16,M18,M42,M48
  • Application: Industrial, Medical, Automobile, Motorcycle, Bicycle, Racing, MTB, etc.
  • Technique: Cold Rolled, Hot rolled & cold rolled
  • Grade: Gr1 Gr2 Gr3 Gr4 Gr5 Gr7 Gr9 Gr12 Gr23 Ti6Al4V-Eli
  • Standard: DIN7991
  • Surface Color: Ti Natural,rainbow,black,blue,purple,green,golden
  • Advantage: Corrosion Resistance
  • Material: pure titanium or alloy titanium
  • Density: 4.51kg/cm3
Availability:
Inquire Add to Basket

  • TiR

Standard：DIN7991-1986

din7991

 d P b C dk ds k max s t
1≤125 125<1≤200 l>200 max min max win max min max min
M3 0.5 12 / / 0.2 6 5.7 3 2.86 1.7 2.1 2.02 1.2 0.95
M4 0.7 14 / / 0.3 8 7.64 4 3.82 2.3 2.6 2.52 1.8 1.55
M5 0.8 16 / / 0.3 10 9.64 5 4.82 2.8 3.1 3.02 2.3 2.05
M6 1 18 24 / 0.3 12 11.57 6 5.82 3.3 4.12 4.02 2.5 2.25
M8 1.25 22 28 / 0.4 16 15.57 8 7.78 4.4 5.14 5.02 3.5 3.2
M10 1.5 26 32 45 0.5 20 19.48 10 9.78 5.5 6.14 6.02 4.4 4.1
M12 1.75 30 36 49 0.5 24 23.48 12 11.73 6.5 6.175 8.025 4.6 4.3
M14 2 34 40 53 0.5 27 26.48 14 13.73 7 10.175 10.025 4.8 4.5
M16 2 38 44 57 0.5 30 29.48 16 15.73 7.5 10.175 10.025 5.3 5
M18 2.5 42 48 61 0.5 33 32.38 18 17.73 8 12.212 12.032 5.5 5.2
M20 2.5 46 52 65 0.5 36 35.38 20 19.67 8.5 12.212 12.032 5.9 5.6
M22 2.5 50 56 69 1 36 35.38 22 21.67 13.1 14.212 14.032 8.8 8.44
M24 3 54 60 73 1 39 38.38 24 23.67 14 14.212 14.032 10.3 9.87
